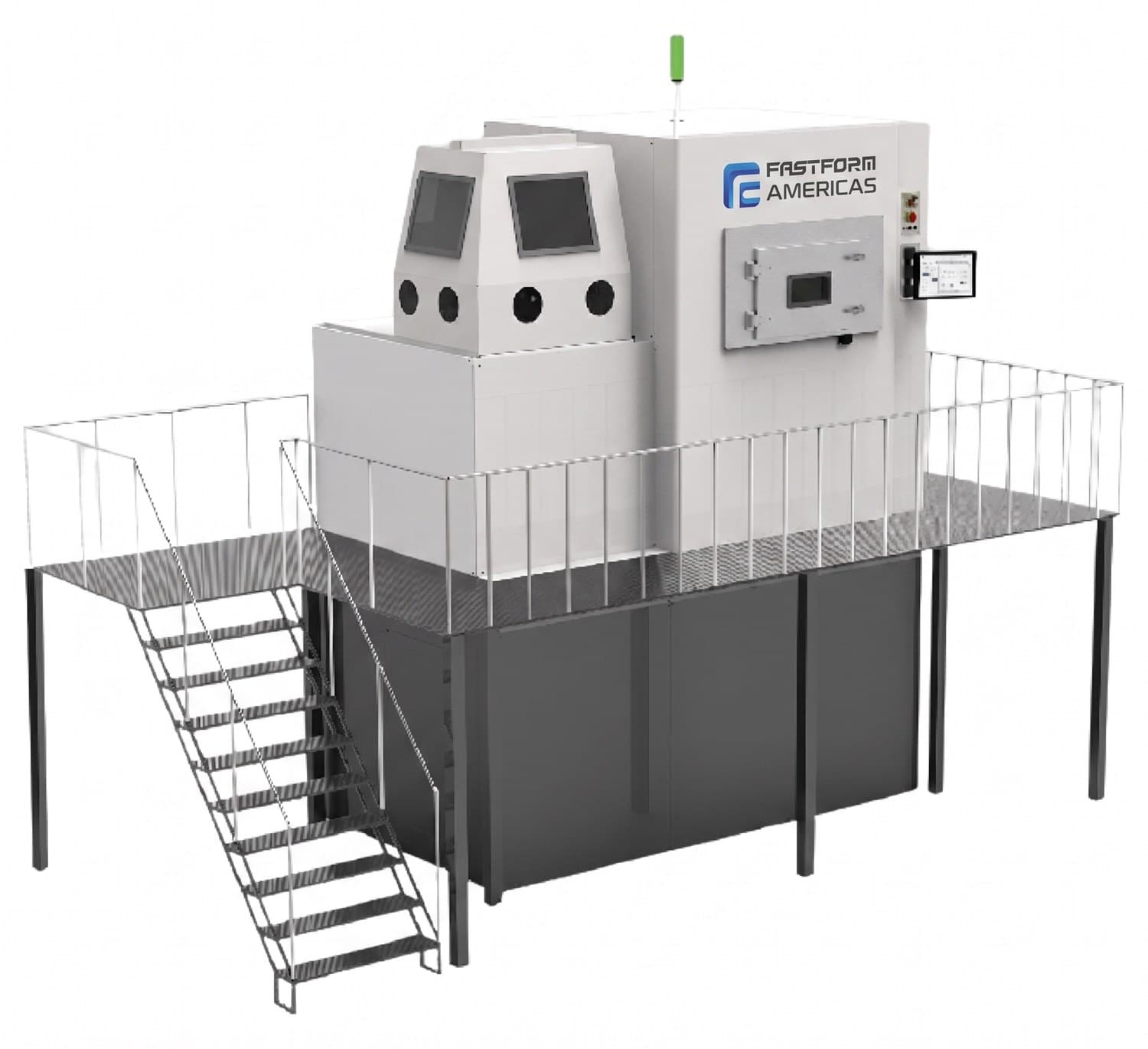

FF-M800
Super-large multi-laser SLM · 4 lasers · industrial mass production
Our most industrial machine. The FF-M800 is a super-large-format, multi-laser SLM system built for serious production — four lasers paired with a dual vibrating-mirror system, bidirectional variable-speed powder feeding, and Z-axis closed-loop control all working together to melt large metal parts fast and repeatably. Print across stainless steel, tool steel, nickel, aluminum, and titanium alloys at a layer resolution down to 150 µm and precision under 100 µm. When your throughput outgrows everything else in the lineup, this is the floor-standing workhorse that keeps up — backed by Americas-wide support from install onward.
Every engagement is scoped on a quick, no-pressure call — tell us about your business and we'll show you exactly what's possible.
Key highlights
- Our most industrial system — super-large-format, multi-laser SLM for serious production
- 4 lasers with a dual vibrating-mirror system for high-throughput melting
- Bidirectional, variable-speed powder feeding for faster builds
- Z-axis closed-loop control for consistent, repeatable layers
- Stainless, tool steel, nickel, aluminum & titanium alloys — under 100 µm precision
- Efficient filter cartridge and air management; data processing in ~5 minutes
Technical Parameters
19 fields · FF-M800- Model No.
- FF-M800
- Forming Technology
- SLM (Selective Laser Melting), multi-laser
- Number of Lasers
- 4 (multi-laser)
- Building Volume
- 650 × 650 × 1100 mm (L×W×H)
- Dimensions
- 6600 × 4050 × 5800 mm (L×W×H)
- Machine Weight
- 6000 kg
- Rated Power
- 20 kW
- Scanning Speed
- 10 m/s (max)
- Forming Rate
- 240 cm³/h (max)
- Preheating Temperature
- 200 °C
- Galvo Type
- Raster-type high-precision digital encoding lens
- Recoating Type
- Top powder feeding, bidirectional recoating
- Powder Feeding
- Bidirectional, variable-speed
- Motion Control
- Z-axis closed-loop
- Protective Gas
- Nitrogen, Argon
- Filtration Lifetime
- Permanent filter ≥ 30,000 hours
- Printing Materials
- Tool steel, stainless steel, titanium alloy, superalloy, aluminum alloy, etc.
- Software
- FastForm slicing & control software
- Warranty
- One Year
Compliance
Manufactured in an ISO 9001-certified facility, CE marked, and built to the FDA laser-safety standard (21 CFR 1040.10). Compliance documentation is supplied with every install.
Certifications are held by the manufacturer.

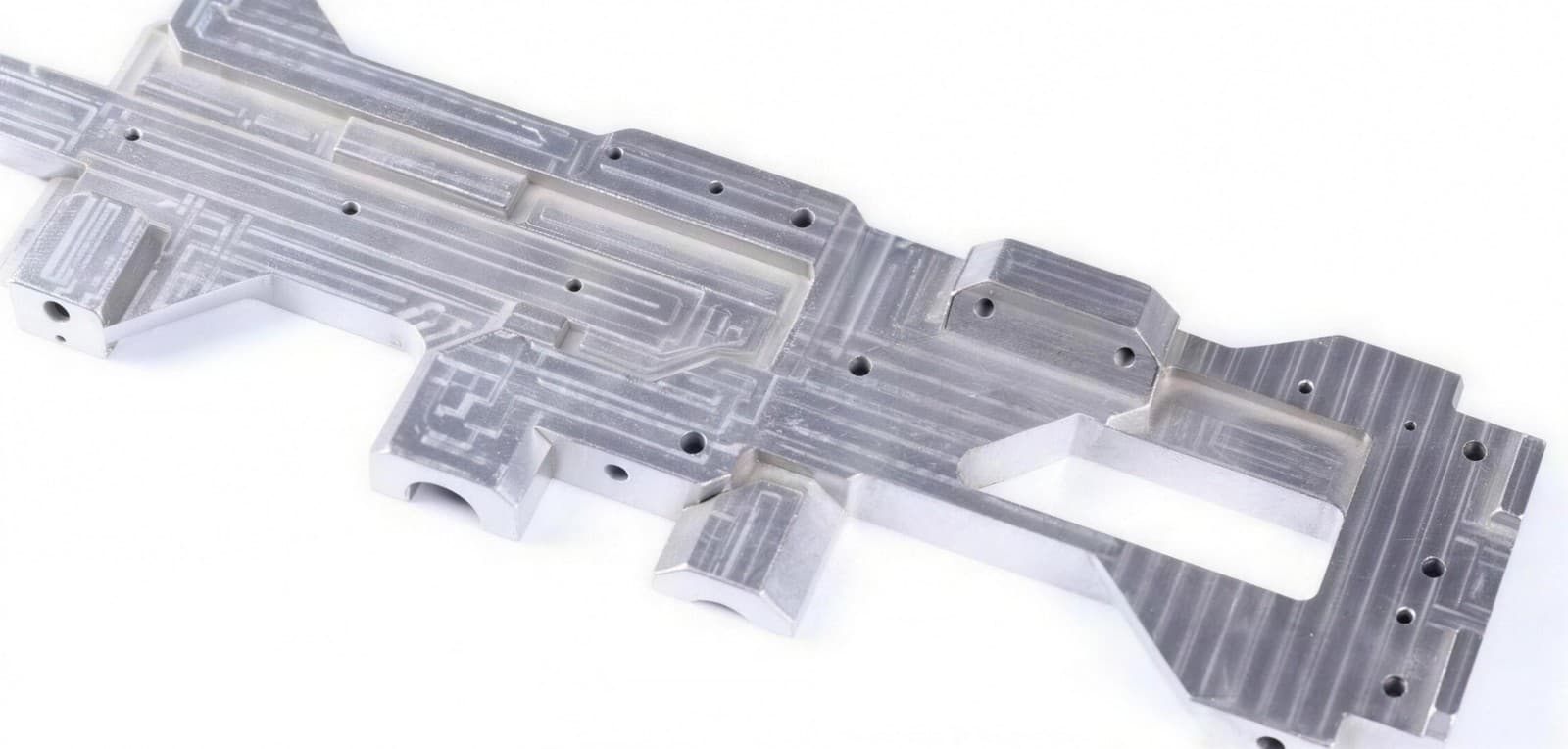

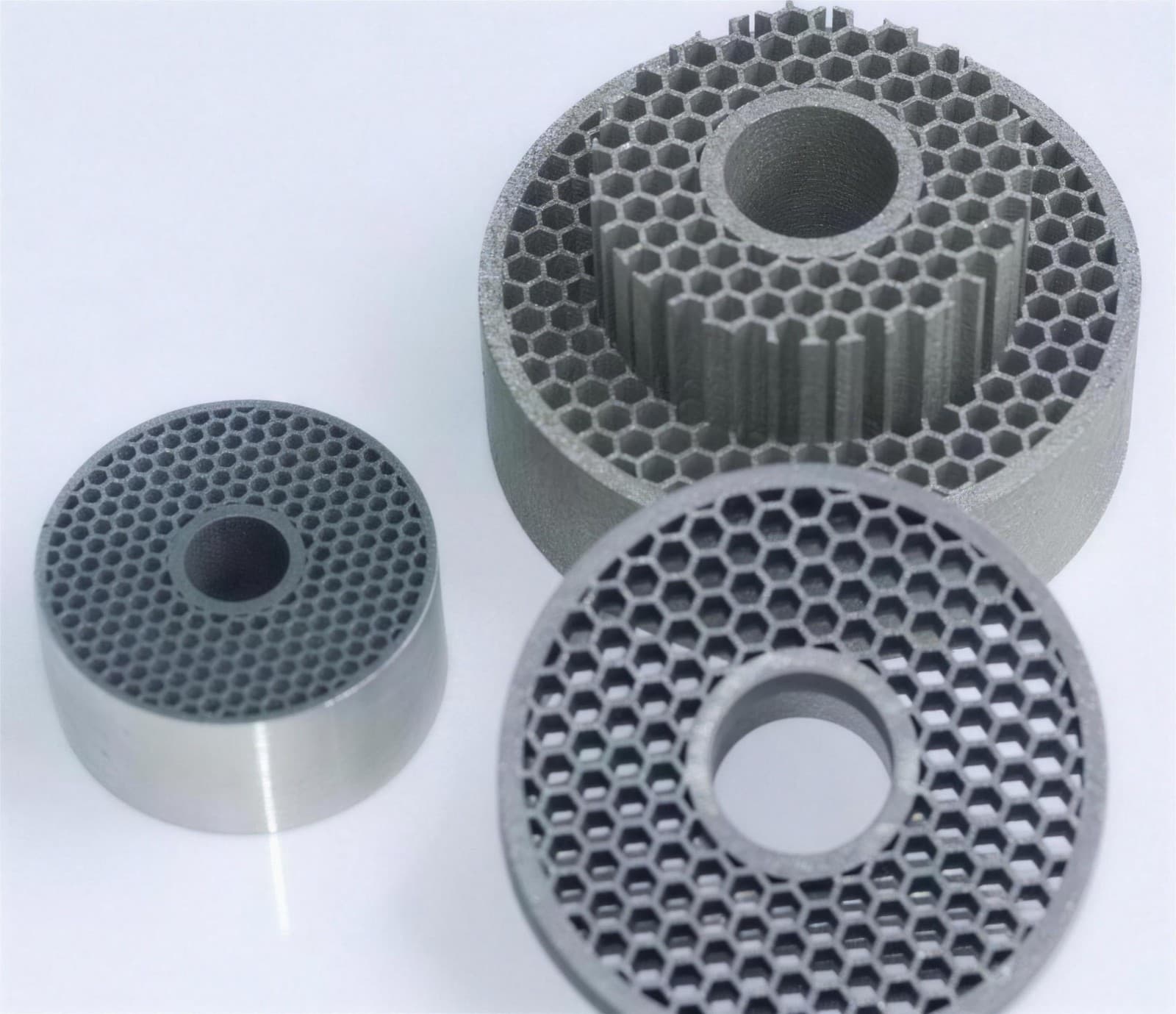

Sample output
What the FF-M800 prints
Metal parts produced on the FF-M800, straight off the build plate — lattice structures, conformal channels, and geometries that can't be cast or machined.
