FF-M300
300 × 300 × 400 mm build · 2–4 × 500 W lasers · 100 cm³/h
A large-format SLM metal printer for industrial molds, tooling and high-volume dental work. Bidirectional powder spreading and one-click typesetting for fast, stable mass production.
Every engagement is scoped on a quick, no-pressure call — tell us about your business and we'll show you exactly what's possible.
Key highlights
- Stable optical system with one-click typesetting
- Fast building — ~300 teeth / 5 hours, 30 supports / 6 hours
- Bidirectional powder spreading, high powder utilization
- Complete typesetting and data processing in ~5 minutes
- Camera remote monitoring; strong stability and easy install
- CE certified; used in aerospace, automotive, medical and education
Technical Parameters
22 fields · FF-M300- Model No.
- FF-M300
- Forming Technology
- SLM (Selective Laser Melting)
- Building Volume
- 300 × 300 × 400 mm (L×W×H)
- Dimensions
- 1960 × 930 × 2222 mm (L×W×H)
- Machine Weight
- 1230 kg / 1260 kg
- Laser Power
- 2 or 4 lasers (optional), 1 × 500 W
- Scanning Speed
- 10 m/s (max)
- Rated Power
- 4 kW / 6 kW
- Forming Rate
- 100 cm³/h (max)
- Optical System
- F-theta lens
- Recoater Type
- Flexible soft blade
- Recoating Type
- Top powder feeding, bidirectional recoating
- Protective Gas
- Nitrogen, Argon ≤ 2 L/min
- Filtration System
- Permanent filter ≥ 30,000 hours
- Printing Materials
- Tool steel, stainless steel, titanium alloy, superalloy, aluminum alloy, etc.
- Software
- FastForm slicing & control software
- Operating System
- Windows 10
- File Formats
- STEP, IGES, SLC, CLI, STL
- Nozzle Number
- 1
- Connection
- WiFi
- Warranty
- One Year
- Production Capacity
- 2000 pcs/year
Compliance
Manufactured in an ISO 9001-certified facility, CE marked, and built to the FDA laser-safety standard (21 CFR 1040.10). Compliance documentation is supplied with every install.
Certifications are held by the manufacturer.

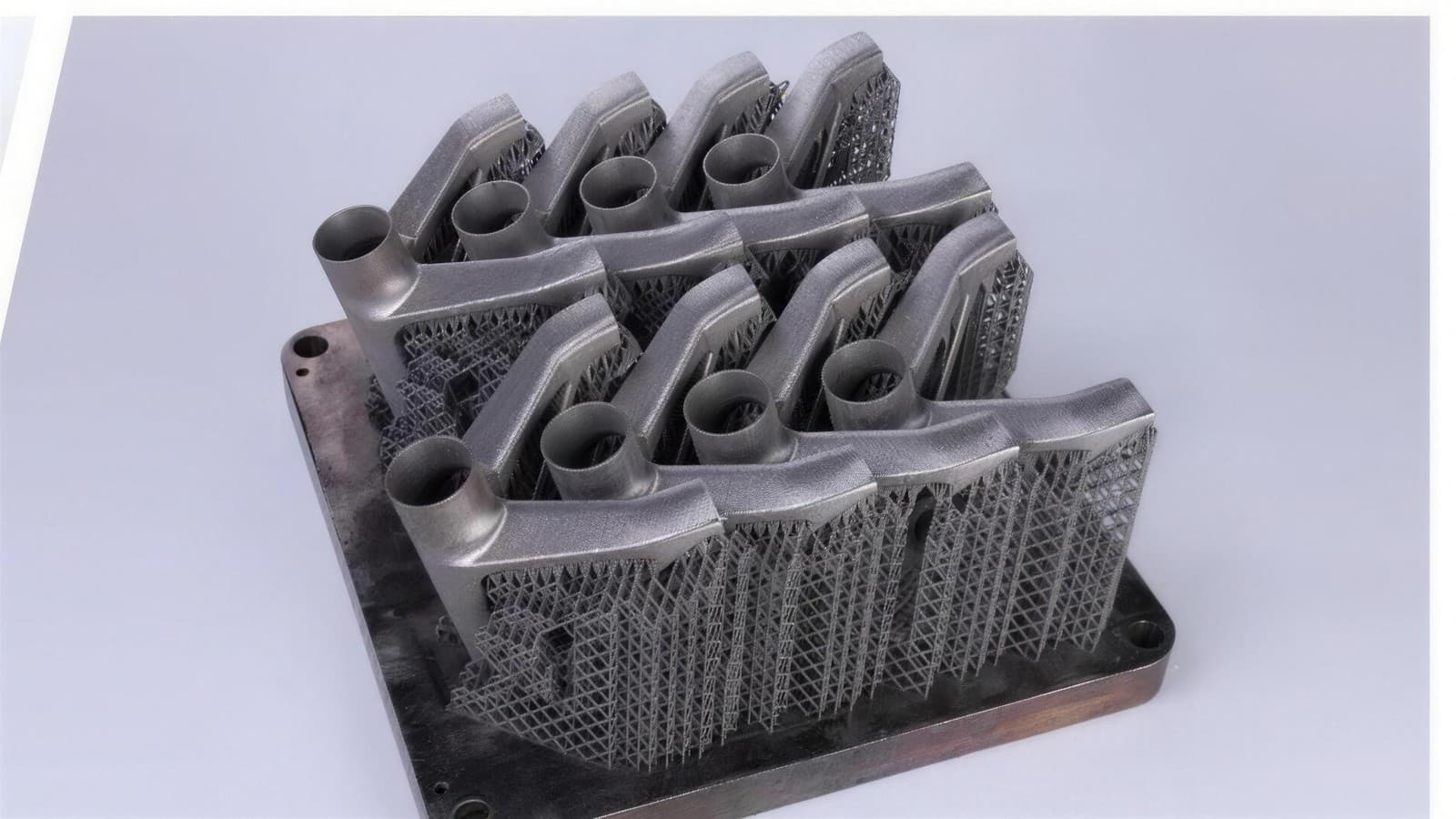

Sample output
What the FF-M300 prints
Metal parts produced on the FF-M300, straight off the build plate — lattice structures, conformal channels, and geometries that can't be cast or machined.
