IndustrialP/N FF-M420
FF-M420
420 × 420 mm build · multi-laser SLM · 240 cm³/h forming rate
The flagship super-large-format multi-laser SLM metal printer, built for serious mass production with a powder circulation system for high-volume runs.
Every engagement is scoped on a quick, no-pressure call — tell us about your business and we'll show you exactly what's possible.
Key highlights
- Super-large multi-laser build for mass production
- Powder circulation system to facilitate high-volume runs
- No filter-cartridge waste, reduced powder usage
- Typesetting and data processing within ~5 minutes
- Bidirectional powder spreading for speed
- Camera remote monitoring for safe, hands-off operation
- CE certified
Technical Parameters
20 fields · FF-M420- Model No.
- FF-M420
- Forming Technology
- SLM (Selective Laser Melting), multi-laser
- Dimensions
- 2753 × 1150 × 2340 mm (L×W×H)
- Machine Weight
- 2000 kg
- Rated Power
- 10 kW
- Scanning Speed
- 10 m/s (max)
- Forming Rate
- 240 cm³/h (max)
- Galvo Type
- Raster-type high-precision digital encoding lens
- Recoater Type
- Flexible soft blade
- Recoating Type
- Top powder feeding, bidirectional recoating
- Protective Gas
- Nitrogen, Argon
- Filtration Lifetime
- Permanent filter ≥ 30,000 hours
- Printing Materials
- Tool steel, stainless steel, titanium alloy, superalloy, aluminum alloy, etc.
- Software
- FastForm slicing & control software
- Operating System
- Windows 10
- File Formats
- STEP, IGES, SLC, CLI, STL
- Nozzle Number
- 1
- Connection
- WiFi
- Warranty
- One Year
- Production Capacity
- 2000 pcs/year
Compliance
Manufactured in an ISO 9001-certified facility, CE marked, and built to the FDA laser-safety standard (21 CFR 1040.10). Compliance documentation is supplied with every install.
Certifications are held by the manufacturer.
Large- and super-large-format SLM for molds, tooling, and serious mass production.

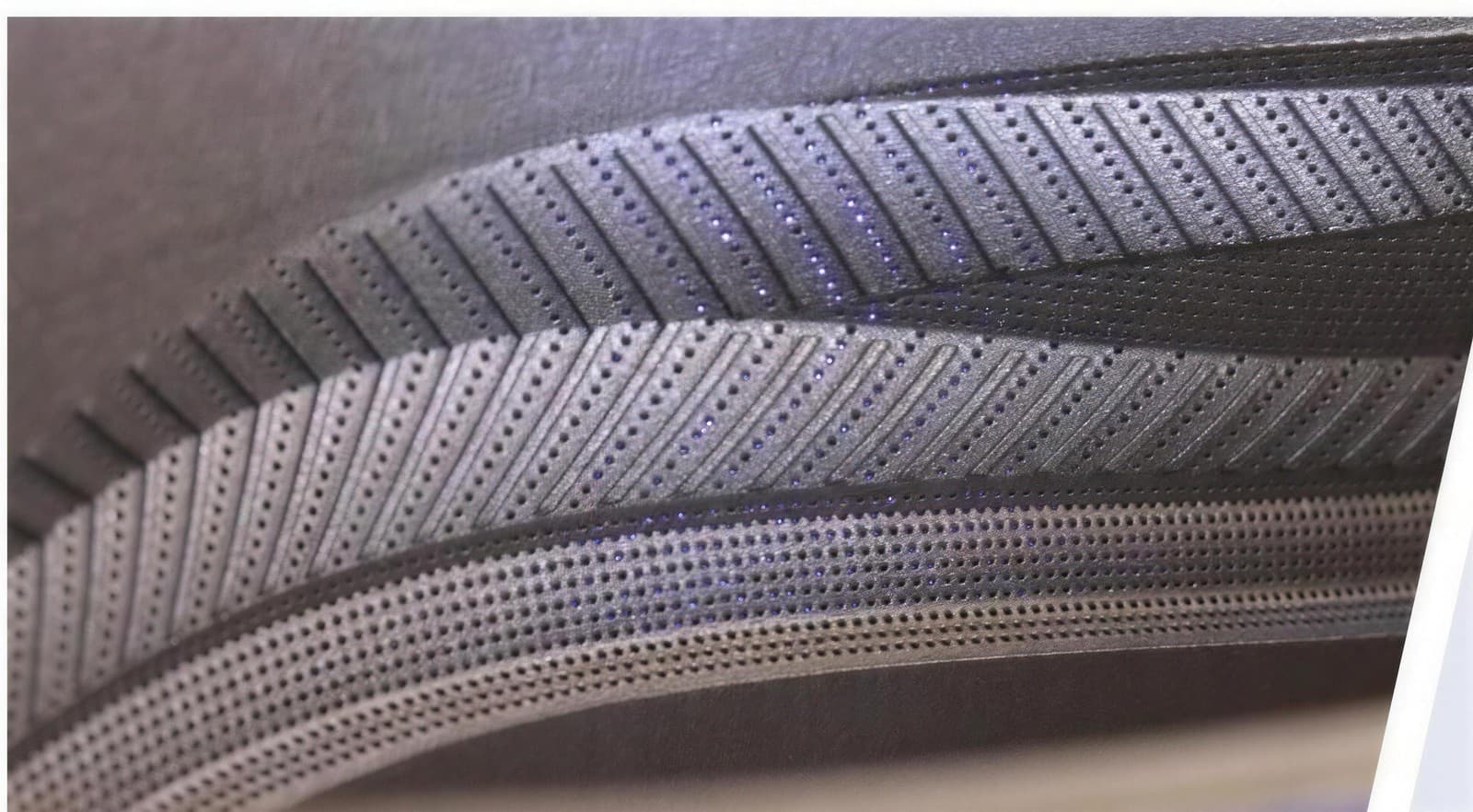

Sample output
What the FF-M420 prints
Metal parts produced on the FF-M420, straight off the build plate — lattice structures, conformal channels, and geometries that can't be cast or machined.
