FF-M220
220 × 140 × 100 mm · dual 500 W lasers · 300 crowns/run
A dual-laser SLM metal printer with a large build volume — print up to 300 crowns or 30 frameworks in a single run. Permanent filter, LFPT efficiency tech, and free-forever in-house software.
Every engagement is scoped on a quick, no-pressure call — tell us about your business and we'll show you exactly what's possible.
Key highlights
- Dual-laser, large build — 220×140×100 mm (up to H200 mm); 300 crowns or 30 frameworks per run
- Permanent filter: 30,000-hour lifetime, zero replacement cost
- LFPT cuts single-layer powder time by 9 s (~20% efficiency gain)
- One-click layout (5 min) and one-click printing; software free forever
- Cost-price core components and 24-hour technical support
Technical Parameters
24 fields · FF-M220- Process
- SLM (Selective Laser Melting), dual-laser
- Product Model
- FF-M220
- Printing Size
- 220 × 140 × 100/220 mm (L×W×H)
- Beam Size
- 60–100 µm (adjustable)
- Powder Layer Thickness
- 20–150 µm (adjustable)
- Recoater Type
- Flexible soft blade
- Number of Lasers
- Dual lasers
- Laser Power
- Dual lasers, 2 × 500 W
- Rated Power
- 2 kW
- Power Supply
- AC 220 V ±10% / 50 Hz, 2 kW
- Protective Gas
- Nitrogen, Argon
- Min. Oxygen
- ≤100 ppm
- Cooling
- Water cooling
- Baseplate Installation
- Magnetic fixed / screw fixed
- Powder Spreading
- Top-down powder feeding
- Scan Speed
- 0–10 m/s
- Accuracy
- ±0.1 mm (L≤100 mm); ±0.1%×L (L>100 mm)
- Layout Method
- Fully automatic layout and path planning
- Filtration Lifetime
- Permanent filter ≥ 30,000 hours
- Printing Materials
- Stainless steel, titanium alloy, tool steel, high-entropy alloy, CoCr alloy, aluminum alloy, copper alloy, etc.
- Printer Dimension
- 1200 × 750 × 1820 mm (L×W×H)
- Max Powder Addition
- 7 L
- Machine Weight
- 550 kg
- Software
- FastForm slicing & control software
Compliance
Manufactured in an ISO 9001-certified facility, CE marked, and built to the FDA laser-safety standard (21 CFR 1040.10). Compliance documentation is supplied with every install.
Certifications are held by the manufacturer.

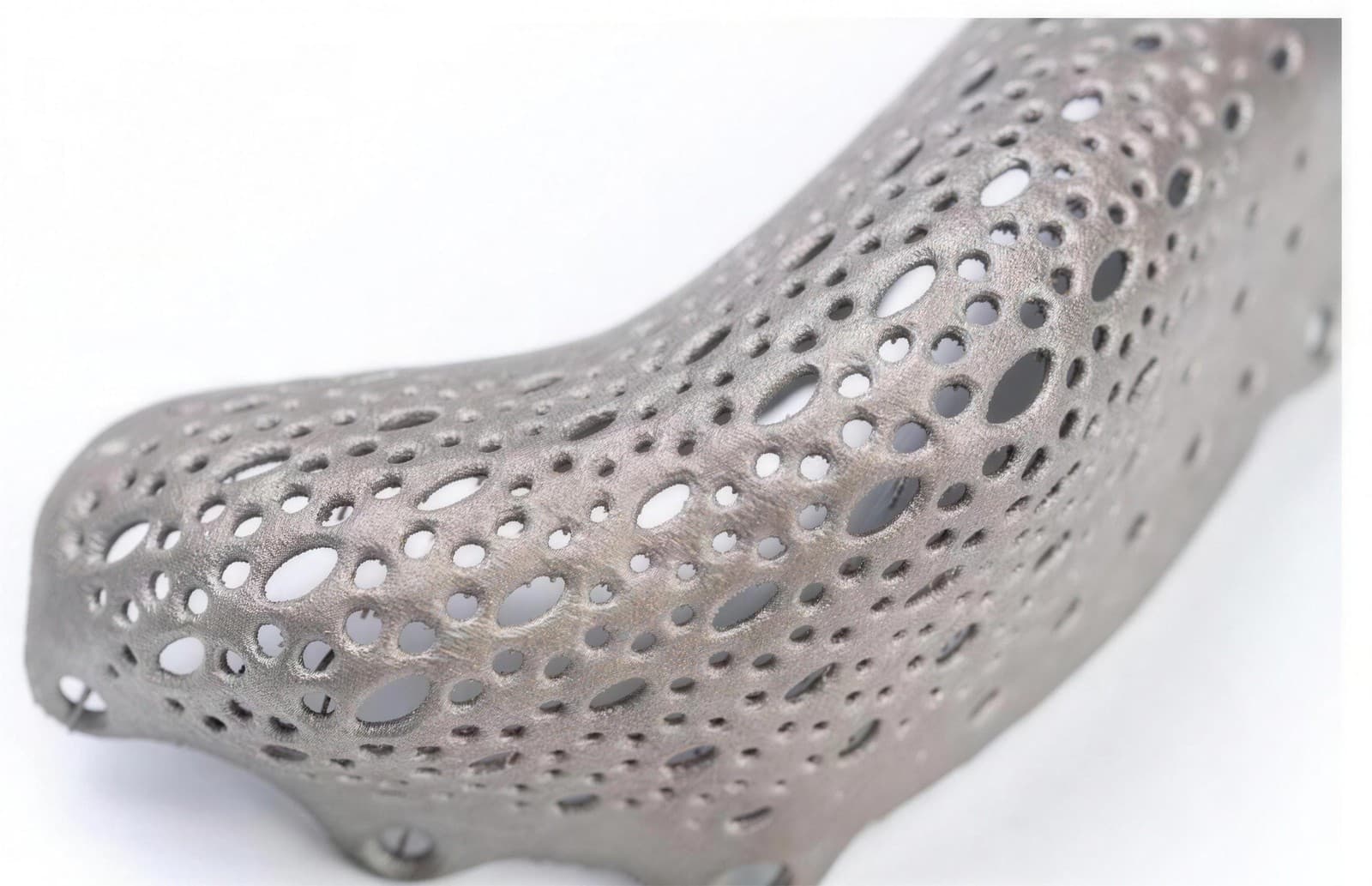

Sample output
What the FF-M220 prints
Metal parts produced on the FF-M220, straight off the build plate — lattice structures, conformal channels, and geometries that can't be cast or machined.
