DentalP/N FF-M140
FF-M140
Ø140 × 170 mm build · 500 W laser · ~150 teeth per run
A specialized single-laser SLM dental metal printer with a Ø140 mm build and one-click dental typesetting. Built for precise, customized dental components with high throughput.
Every engagement is scoped on a quick, no-pressure call — tell us about your business and we'll show you exactly what's possible.
Key highlights
- Stable optical system with one-click dental typesetting
- Fast building — ~150 teeth per shot
- No-filter-cartridge waste, high powder utilization
- Complete typesetting and data processing in ~5 minutes
- Camera-equipped for safe remote monitoring
- Control software supports up to 36-galvanometer multi-laser splicing
Technical Parameters
29 fields · FF-M140- Process
- SLM (Selective Laser Melting)
- Product Model
- FF-M140
- Print Volume
- Ø140 mm × H100 mm / Ø140 mm × H170 mm
- Dimension
- 970 × 815 × 1750 mm (L×W×H)
- Machine Weight
- 450 kg
- Beam Size
- 50–100 µm (adjustable)
- Powder Layer Thickness
- 20–120 µm (adjustable)
- Recoater Type
- Flexible soft blade
- Number of Lasers
- Single laser
- Laser Power
- Single laser, 1 × 500 W
- Rated Power
- 1.5 kW
- Power Supply
- Single phase 220 V, ~1.5 kW
- Protective Gas
- Nitrogen, Argon
- Min. Oxygen
- ≤100 ppm
- Cooling
- Water cooling
- Baseplate Installation
- Magnetic fixed / screw fixed
- Powder Spreading
- Top feeding, one-way recoating
- Scan Speed
- 0–10 m/s
- Accuracy
- ±0.1 mm (L≤100 mm); ±0.1%×L (L>100 mm)
- Layout Method
- Fully automatic layout and path planning
- Max Powder / Charge
- 3 L
- Power-Failure Resume
- Yes
- Auto Shutdown
- Yes
- Printing Materials
- Stainless steel, titanium alloy, tool steel, high-entropy alloy, cobalt alloy, aluminum alloy, copper alloy, etc.
- Filtration Lifetime
- Permanent filter ≥ 30,000 hours
- Software
- FastForm slicing & control software
- Warranty
- 1 year
- Connection
- WiFi
- Production Capacity
- 2000 pcs/year
Compliance
Manufactured in an ISO 9001-certified facility, CE marked, and built to the FDA laser-safety standard (21 CFR 1040.10). Compliance documentation is supplied with every install.
Certifications are held by the manufacturer.
Precision SLM metal printers tuned for crowns, frameworks, and dental labs.

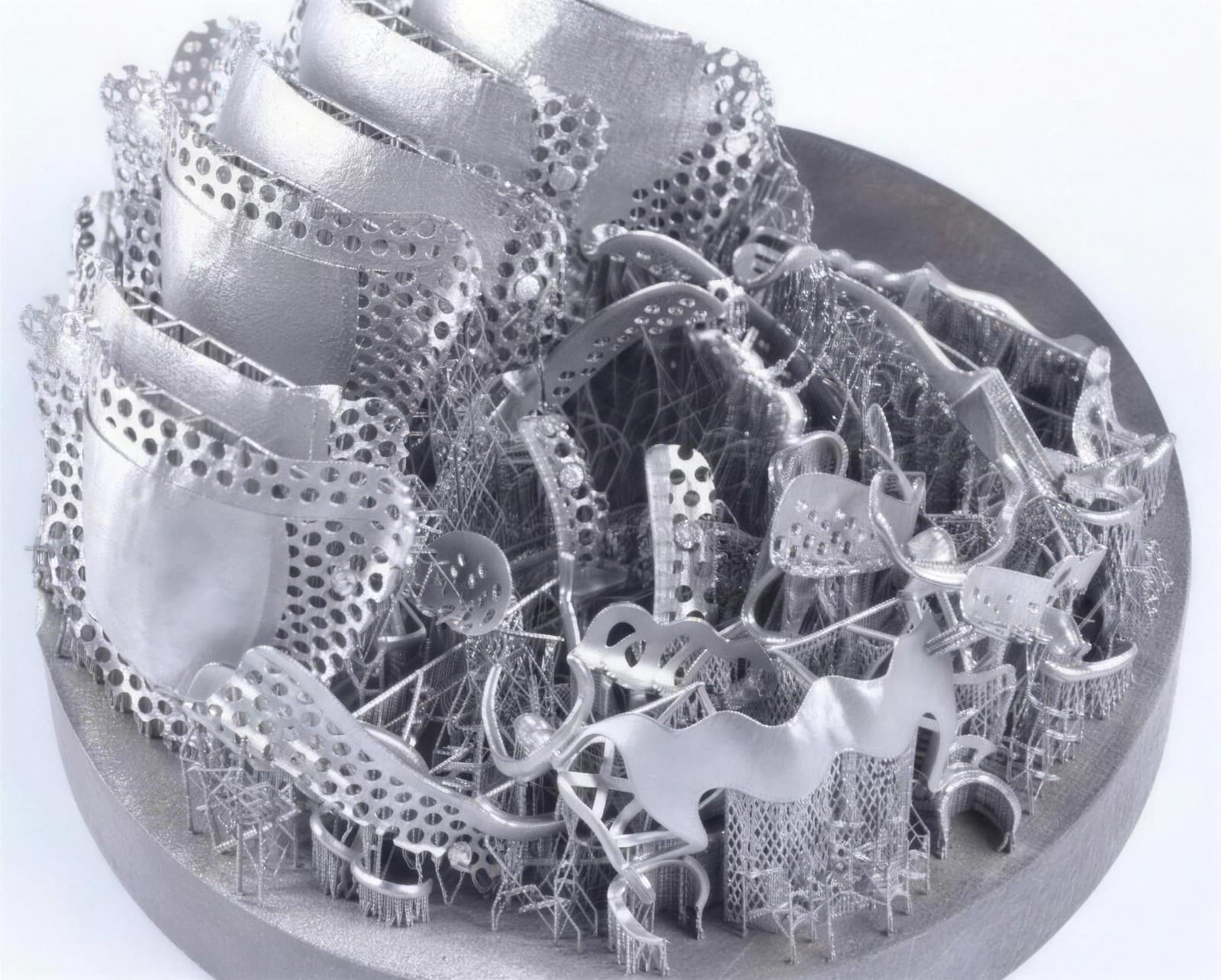

Sample output
What the FF-M140 prints
Metal parts produced on the FF-M140, straight off the build plate — lattice structures, conformal channels, and geometries that can't be cast or machined.
