DeskFab X1
Ø100 × 70 mm build · 300 W fiber laser · CoCr & titanium
An all-in-one true desktop SLM metal printer built for dental labs and small-batch metal work. Compact 0.39 m² footprint, AI one-click printing, and a maintenance-free permanent filter make it the easiest entry point into in-house metal additive manufacturing.
Every engagement is scoped on a quick, no-pressure call — tell us about your business and we'll show you exactly what's possible.
Download spec sheet (PDF)Key highlights
- All-in-one integrated desktop design — 600×650×800 mm, only 0.39 m² floor space
- Permanent filter: 30,000-hour service life, maintenance-free, tool-free, zero install errors
- One-click AI printing — scan to design in ~5 minutes
- Multi-material modular cartridge: CoCr, Ti and more, switchable
- Hassle-free install with 4-color coded, mistake-proof conduits
- Exclusive LFPT (Laser Follow Powder Technology) boosts efficiency ~20%
Technical Parameters
25 fields · DeskFab X1- Process
- SLM (Selective Laser Melting)
- Printer Model
- DeskFab X1
- Dimensions
- 615 × 655 × 850 mm (L×W×H)
- Weight
- 140 kg
- Building Size
- Ø100 × 70 mm
- Spot Size
- 20–80 µm
- Laser Power
- Single laser, 300 W
- Laser Type
- CW Fiber Laser
- Rated Power
- 1 kW
- Min. Oxygen
- ≤100 ppm
- Scan Speed
- 0–7 m/s
- Layer Thickness
- 20–80 µm (adjustable)
- Recoater Type
- Flexible soft blade
- Powder Feeding Type
- Top powder feeding, one-way recoating
- Printing Accuracy
- ±0.05 mm (L≤100 mm)
- Powder Capacity
- 1.5 L
- Power Failure
- Auto Resume
- Baseplate Fixing
- Quick-release magnetic fixed
- Layout Method
- Fully automatic layout and path planning
- Filtration
- Permanent filter ≥ 30,000 hours
- Printable Materials
- Cobalt-chromium alloy, titanium alloy, pure titanium
- Software
- FastForm slicing & control software
- Cooling
- Water-cooled
- Power Input
- 220 V AC single phase, ~1 kW avg
- Protective Gas
- Nitrogen, Argon
Compliance
Manufactured in an ISO 9001-certified facility, CE marked, and built to the FDA laser-safety standard (21 CFR 1040.10). Compliance documentation is supplied with every install.
Certifications are held by the manufacturer.

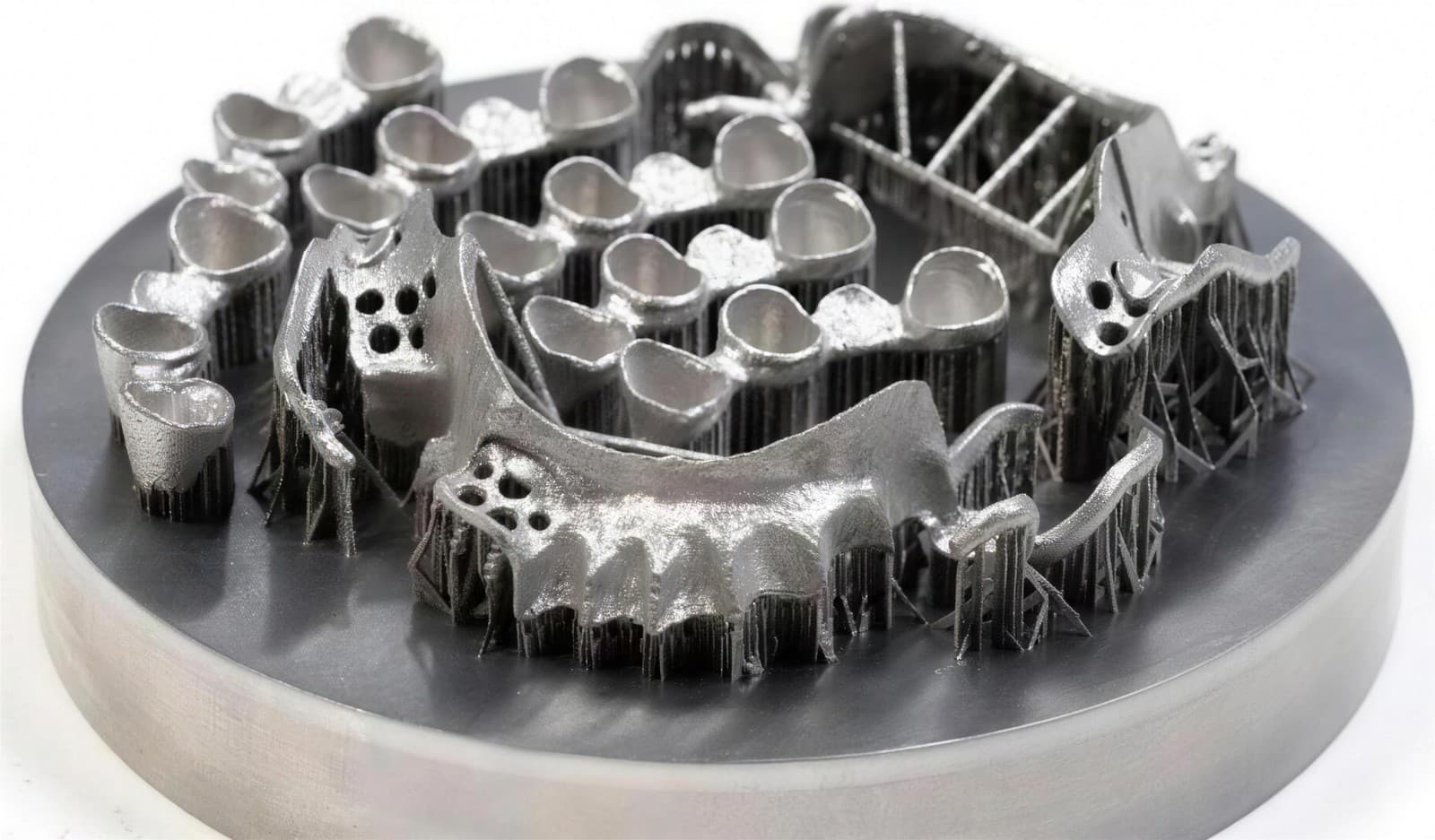

Sample output
What the DeskFab X1 prints
Metal parts produced on the DeskFab X1, straight off the build plate — lattice structures, conformal channels, and geometries that can't be cast or machined.
